±1 A Potentiostat with EIS up to 2 MHz and 1% / 2° Accuracy at 1 mΩ

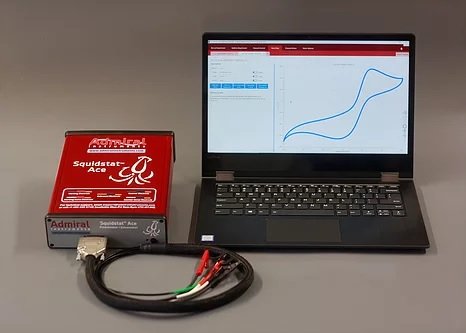

Powerful & Compact ±1 A Potentiostat for DC Experiments
±1 A Potentiostat with EIS up to 2 MHz and 1% / 2° Accuracy at 1 mΩ
Powerful & Compact ±1 A Potentiostat for DC Experiments
Specifications
General Specifications
|
Price Per Unit ($USD) |
|
|
Channels Per Unit |
1 |
|
Operating Modes |
Pot / Gal / ZRA / FRA |
|
Cell Connections |
2, 3, 4, or 5 electrode |
|
ADC/DAC Resolution |
16 bit resolution |
|
Slew Rate (No Load) |
5 MV/s |
|
Maximum Sampling Speed |
100,000 samples/s |
|
Floating and/or Earth-grounding |
Both (Switchable) |
|
Input Impedance |
> 10 Tera-ohm |
|
Input Bias Current |
< 1 pA |
|
Data Backup Memory (Onboard) |
16 GB |
|
Physical Dimensions |
24 cm x 17 cm x 6 cm |
|
Channel Cable Length |
100 cm |
|
Computer Interface |
1 USB per unit |
|
Power Supply Requirements |
100 – 240 VAC, 50 – 60 Hz |
Potentiostatic Input/Output
|
Compliance Voltage |
±12 V per channel |
|
Scan Ranges (Controlled Voltage) |
4 ranges (±10 V, ±5 V, ±1 V, ±0.5 V) |
|
Applied Potential Accuracy |
0.1% of setpoint, 1 mV min |
|
Applied Potential Resolution |
0.003% of range, 15 µV min |
|
Measured Potential Accuracy |
0.1% of measurement, 1 mV min |
|
Measured Potential Resolution |
0.003% of range, 15 µV min |
Galvanostatic Input/Output
|
Maximum Current |
±1 A |
|
Current Ranges |
8 ranges (100 nA to 1 A) |
|
Applied Current Accuracy |
0.1% of range, 1 nA min |
|
Applied Current Resolution |
0.003% of range, 3 pA min |
|
Measured Current Accuracy |
0.1% of range, 1 nA min |
|
Measured Current Resolution |
0.003% of range, 3 pA min |
Impedance Analyzer
|
AC Frequency Range for EIS |
10 μHz to 2 MHz |
|
AC Frequency Accuracy |
0.005% or better |
|
AC Frequency Resolution |
0.0004%, 3 µHz max |
